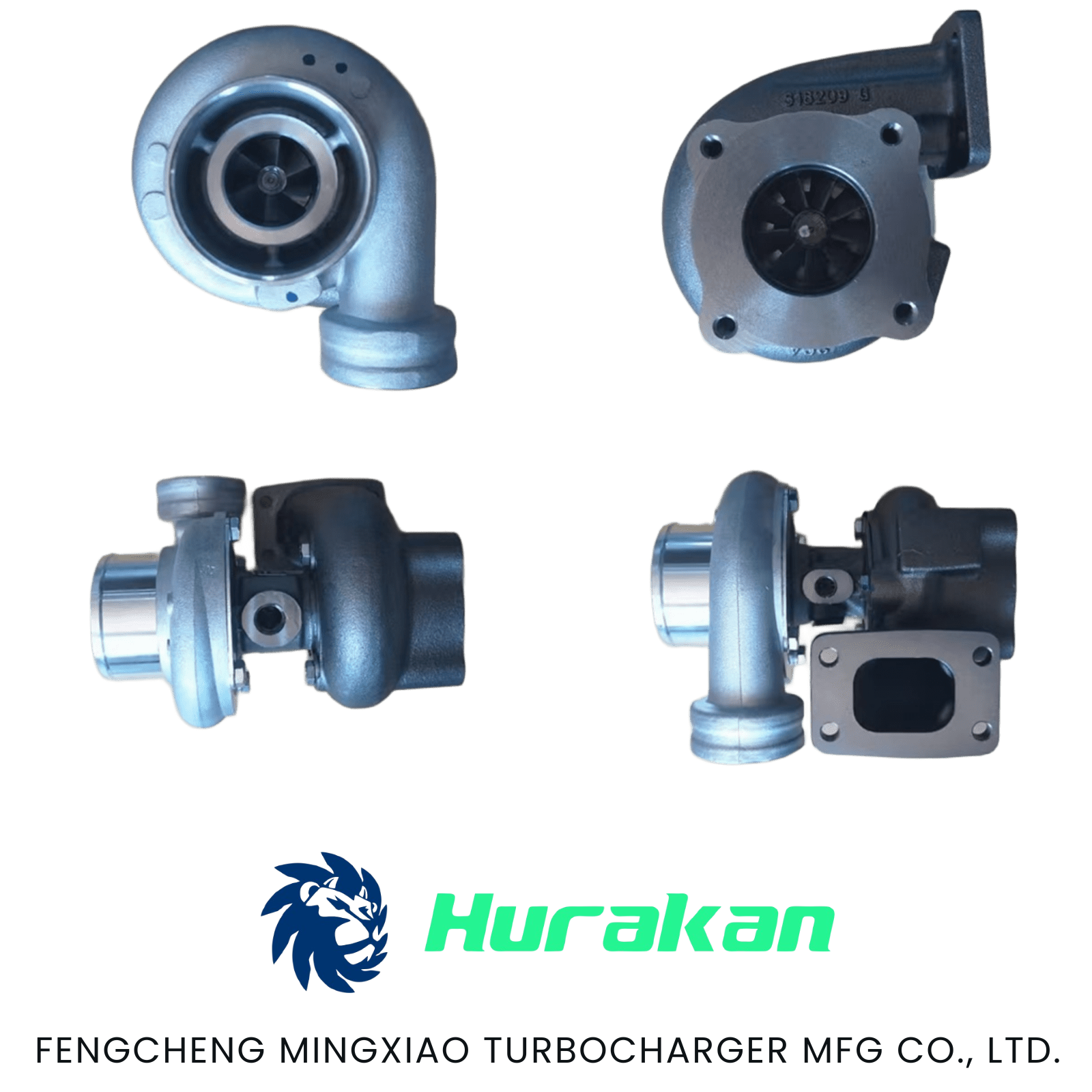

GT2556S Turbo (711736-0026) for 2003- Perkins Agricultural, Cat 416E Engines
Type:
Description
| Part Number | 711736-5026S |
| Previous Version | 711736-0003, 711736-0010, 711736-0016, 711736-0026, 711736-3, 711736-10, 711736-16, 711736-26 |
| OE number | 2674A226, 2674A227, 2373786, 237-3786 |
| Year | 2003- |
| CHRA | 433289-0185 (433289-5185S, 433289-0255)(1000010381, 1102025901) |
| Description | Cat. 416E, Massey Ferguson 5455 Tractor, Loader, Backhoe 420D-IT |
| Turbo Model | GT25, GT2556S |
| Engine | Vista 4 EPA Tier 2 |
| Engine Manufacturer | Perkins |
| Displacement | 4.4L, 4400 ccm, 4 Cylinders |
| Fuel | Diesel |
| Angle α (compressor housing) | 336º |
| Angle β (turbine housing) | 338º |
| Bearing Housing | 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(Oil Cooling Type) |
| Turbine Wheel | 436563-0003 (436563-0010)(Ind. 54. mm, Exd. 45.72 mm, 12 Blades) |
| Comp. Wheel | 436336-0019 (436563-0002) (Ind. 39.7 mm, Exd. 56. mm, 6+6 Blades, Superback)(1102022408) |
| Back plate | 721086-0001 |
| Heat shield Number | 434686-0001 |
| Repair Kit | 732252-0001 (1102015756) |
| Turbine Housing | 711739-0001 |
| Compressor Cover | 721260-0003 |
| Turbine Housing AR | 0.52 |
| Actuator | 436806-0022 |
| Settings waste gate (pressure) | 0.970-1.030 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 210658 |
| Gasket (oil outlet) | 210553 (210243)(Non Metallic) |
| Applications | 2003- Perkins Agricultural Tractor, Truck with Vista 4 EPA Tier 2 Engine 2003- Massey Ferguson Agricultural 5455 Tractor, Truck with Vista 4 EPA Tier 2 Engine 2003- Caterpillar 416E Tractor, Truck with Vista 4 EPA Tier 2 Engine |
